| 品牌：祥和 | 型号：YK60 | 适用范围：制药，化工，食品，电子等 |
| 产品别名：制丸机 | 重量：53kg |

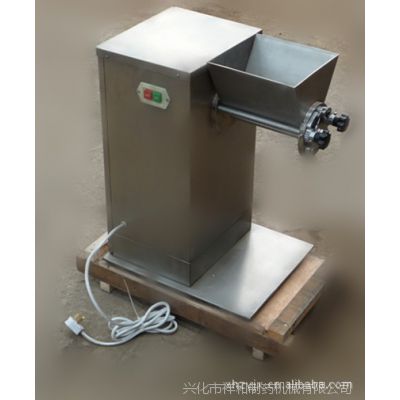

YK60摇摆式颗粒机
简介:
本机可将潮湿的粉料研制成所需颗粒,也可将块状干料粉碎成所需颗粒.筛网装拆简易方便.
主要技术参数:
滚刀直径 | 60mm |
滚刀转速 | ±46r/min |
料斗口尺寸 | 200×150mm |
生产能力 | 20-25kg/h |
电动机 | 0.37kW |
外形尺寸(mm) | 530×400×530 |
重量 | 53kg |
YK 60pellet making machine
Introduction:
1.The parts that the materials may touch are made of stainless steel It is featured of .good appearance,
2. This machine convenient cleaning,
3. It easy to operation and low energy consumption
Widely used in pharmaceutical ,chemical and foodstuff trades etc. It can make wet powdery material into granulates or crush block dry material ,as well as carry out speedy granulation.
Working Principle:
The drum is swung repeatedly through mechanical driving ,which makes the material extruded from sieve, further granulated or crushed or speedily palletized.
Main Technical Specificatings:
Hob diameter | 60mm |
Hob speed | ±46r/min |
Hopper mouth size | 200*150mm |
Production capacity | 20-25kg/h |
motor | 0.37kw |
Shape dimension | 500*400*540 |
weight | 53kg |
